Trilobe Shape Catalyst Carrier
Trilobe Shape Catalyst Carrier
Trilobe Shape Catalyst Carrier -
Trilobe Shape Catalyst Carrier
- 型号Trilobe Shape Catalyst Carrier

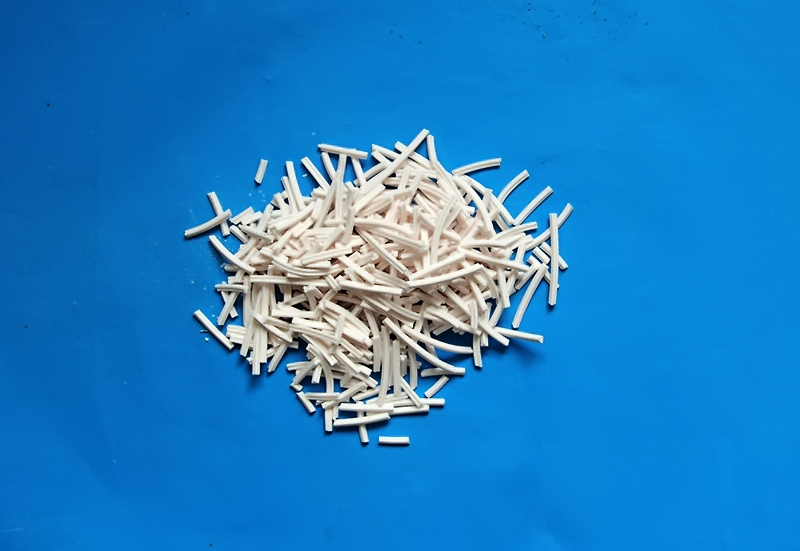

This product was made from activated alumina and false monohydrate aluminum adhesive. It owns stable surface, good crushing strength, low abrasion, suitable pore shape, low impurity, good active component impregnation.
Introduction:
This product was made from activated alumina and false monohydrate aluminum adhesive. It owns stable surface, good crushing strength, low abrasion, suitable pore shape, low impurity, good active component impregnation.
Yinghe produce various of extrudates carriers including clover extrudate(trefoil), quadrifoil extrudateds, etc. Alumina is the raw material of carrier. The main physical properties are as following:
Specification:
Item |
Technical specification | ||
Appearance |
Clover extrudate |
Clover extrudate |
Quadrifoil extrudate |
Color |
White |
White |
White |
Diameter(mm) |
3.2-5.0 |
1.4-3.0 |
≥2.0 |
Size(mm) |
4.0-8.0 |
4.0-7.0 |
4.0-8.0 |
Pore Volume(ml/g) |
0.5-0.75 |
0.5-0.75 |
0.5-0.75 |
Surface Area(m2/g) |
180-350 |
180-350 |
180-350 |
Crushing Strength
(N/Particle) |
≥30 |
≥30 |
≥30 |
Bulk Density(kg/l) |
0.5-0.75 |
0.5-0.75 |
0.5-0.75 |
Different sizes and structures can be supplied according to customers’ requirements
